M57950L Datasheet, Hybrid-ic, Mitsubishi

M57950L Features

  • Hybrid-ic a small outline of 10-pin SIP. OUTLINE DRAWING 29MAX. 20MAX. 3.0MAX. Dimensions in mm q Electrical isolation between input and output with integrated optocoupler. Viso=2500Vrms Large

PDF File Details

Part number:

M57950L

Manufacturer:

Mitsubishi

File Size:

50.35kb

Download:

📄 Datasheet

Description:

Hybrid-ic. M57950L is a Hybrid Integrated Circuit designed for driving Transistor Modules QM30DY, QM50DY, etc., in an Inverter application. This

Datasheet Preview: M57950L 📥 Download PDF (50.35kb)

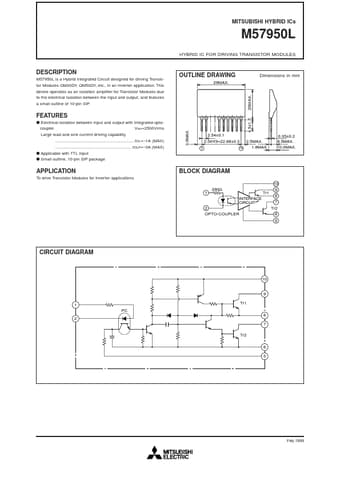

Page 2 of M57950L Page 3 of M57950L

M57950L Application

  • Applications BLOCK DIAGRAM 10 9 1 Tr1 8 INTERFACE 7 CIRCUIT 2 Tr2 OPTO-COUPLER 6 5 390Ω CIRCUIT DIAGRAM 10 9 1 PC 2 8 7 Tr2 6 5 Tr1 Feb.1999 M
