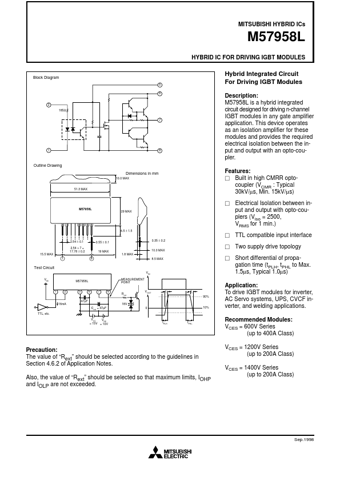

M57958L Datasheet, Hybrid-ic, Mitsubishi

M57958L Features

• Hybrid-ic ٗ Built in high CMRR optocoupler (VCMR : Typical 30kV/µs, Min. 15kV/µs) ٗ Electrical Isolation between input and output with opto-couplers (Viso = 2500, VRMS for 1 min.) 2 185Ω 7 1

PDF File Details

Part number:

M57958L

Manufacturer:

Mitsubishi

File Size:

31.77kb

Download:

📄 Datasheet

Description:

Hybrid-ic. M57958L is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate amplifier application. This device op

M57958L Application

• Applications Recommended Modules: VCES = 600V Series (up to 400A Class) VCES = 1200V Series (up to 200A Class) VCES = 1400V Series (up to 200A Clas
