M57957L Datasheet, Hybrid-ic, Mitsubishi

M57957L Features

  • Hybrid-ic ٗ Built in high CMRR optocoupler (VCMR : Typical 30kV/µs, Min. 15kV/µs) ٗ Electrical Isolation between input and output with opto-couplers (Viso = 2500, VRMS for 1 min.) ٗ TTL compatib

PDF File Details

Part number:

M57957L

Manufacturer:

Mitsubishi

File Size:

29.89kb

Download:

📄 Datasheet

Description:

Hybrid-ic. M57957L is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate amplifier application. This device op

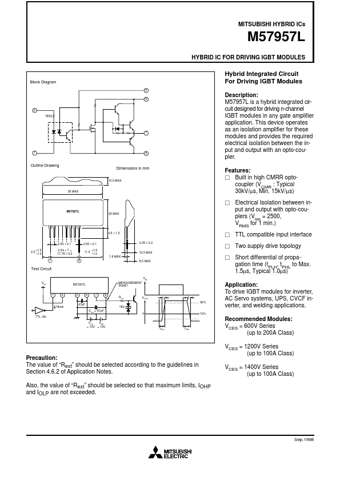

Datasheet Preview: M57957L 📥 Download PDF (29.89kb)
Page 2 of M57957L

M57957L Application

  • Applications Recommended Modules: VCES = 600V Series (up to 200A Class) VCES = 1200V Series (up to 100A Class) VCES = 1400V Series (up to 100A Clas
