M58479P

CMOS Counter / Timer

M58479P Features

* low power dissipation. FEATURES

* Low power dissipation M58479P: 2mW (typ.1, 7.5mW (max.) M58482P: 200/J.W (tyP.), 750/J.W (max.)

* Superior noise immunity

* Single power supply with a zenor diode

* Internal RC oscillator

* Precise oscillation frequency regula

M58479P General Description

The M58479P and M58482P are electronic timer ICs developed by aluminum-gate CMOS technology. Use of these ICs makes possible timer devices without mechanical elements, which have reduced power dissipation, superior reliability, and higher noise immunity. The M58479P
*is specifically designed for.

M58479P Datasheet (575.08 KB)

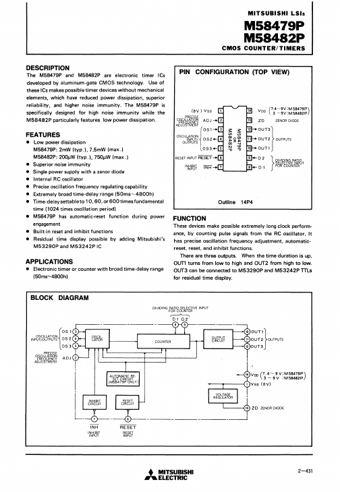

Preview of M58479P PDF

Datasheet Details

Part number:

M58479P

Manufacturer:

Mitsubishi

File Size:

575.08 KB

Description:

Cmos counter / timer.
