M5L8156P

2048-BIT STATIC RAM

Mitsubishi

M5L8156P Features

* Single 5V supply voltage

* TTL compatible

* Compatible with MELPS 85 devices

* Static RAM: 256 words by 8 bits

* Programmable 8-bit I/O port 2

* Programmable 6-bit I/O port 1

* Programmable counter/timer: 14 bits

* Multiplexed address

M5L8156P General Description

The M5L8156P is a 2K-bit RAM (256-word by 8-bit) fabricated with the N-channel silicon-gate EO-MOS technology. This IC has 3 I/O ports and a 14-bit counter/timer which make it a good choice to extend the functions of an 8-bit microcomputer. It is incased in a 40-pin plastic OIL package and operates .

M5L8156P Datasheet (515.54 KB)

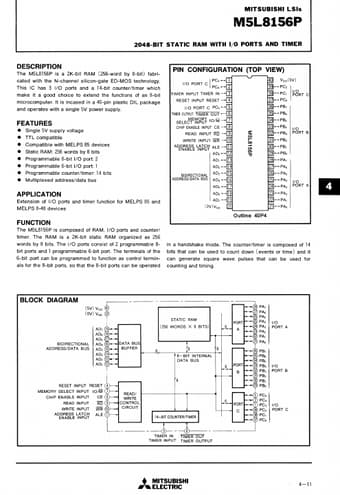

M5L8156P Datasheet Preview — Preview of M5L8156P PDF
