M5M51016BRT-10LL-I Datasheet - Mitsubishi

1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

M5M51016BRT-10LL-I Features

* Power supply current Type name M5M51016BTP,RT-70L M5M51016BTP,RT-10L M5M51016BTP,RT-70LL M5M51016BTP,RT-10LL Access time (max) Active (max) stand-by (max) 200µA (VCC = 5.5V) 70ns 100ns 30mA (1MHz) 70ns 100ns 40µA (VCC = 5.5V) 0.3µA (VCC = 3.0V, typ) Single +5.0V power supply Low stand-by curre

M5M51016BRT-10LL-I General Description

The M5M51016BTP, RT are a 1048576-bit CMOS static RAM organized as 65536 word by 16-bit which are fabricated using high-performance triple polysilicon CMOS technology. The use of resistive load NMOS cells and CMOS periphery result in a high density and low power static RAM. They are low stand-by cur.

M5M51016BRT-10LL-I Datasheet (79.49 KB)

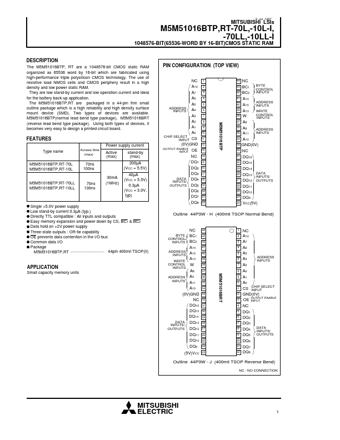

Preview of M5M51016BRT-10LL-I PDF

Datasheet Details

Part number:

M5M51016BRT-10LL-I

Manufacturer:

Mitsubishi

File Size:

79.49 KB

Description:

1048576-bit(65536-word by 16-bit)cmos static ram.
99 Jul Jul ,1997 ,1997 MITSUBISHI MITSUBISHI LSIs LSIs M5M51016BTP,RT-70L,-10L-I, M5M51016BTP,RT-70L,-10L-I, -70LL,-10LL-I -70LL,-10LL-I 1048576-BIT.
