M5M51016BRT-12VLL

1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

M5M51016BRT-12VLL Features

* Power supply current Type name Access time (max) Active (max) stand-by (max) 60µA (VCC = 3.6V) M5M51016BTP,RT-12VL 120ns 12mA (1MHz) M5M51016BTP,RT-12VLL 120ns 12µA (VCC = 3.6V) 0.3µA (VCC = 3.0V, typ) Single +3.0V power supply Low stand-by current 0.3µA (typ.) Directly TTL compatible : All

M5M51016BRT-12VLL General Description

The M5M51016BTP, RT are a 1048576-bit CMOS static RAM organized as 65536 word by 16-bit which are fabricated using high-performance triple polysilicon CMOS technology. The use of resistive load NMOS cells and CMOS periphery result in a high density and low power static RAM. They are low stand-by cur.

M5M51016BRT-12VLL Datasheet (75.91 KB)

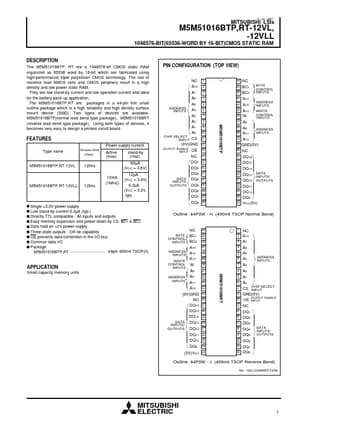

Preview of M5M51016BRT-12VLL PDF

Datasheet Details

Part number:

M5M51016BRT-12VLL

Manufacturer:

Mitsubishi

File Size:

75.91 KB

Description:

1048576-bit(65536-word by 16-bit)cmos static ram.
