M5M51016BRT-12VLL-I, 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

9 9 Jul Jul,1997 ,1997 M5M51016BTP,RT-12VL-I, M5M51016BTP,RT-12VL-I, -12VLL-I -12VLL-I 1048576-BIT(65536-WORD 1048576-BIT(65536-WORD BY BY 16-BIT)CMO.
The M5M51016BTP, RT are a 1048576-bit CMOS static RAM organized as 65536 word by 16-bit which are fabricated using high-performance triple polysilicon.

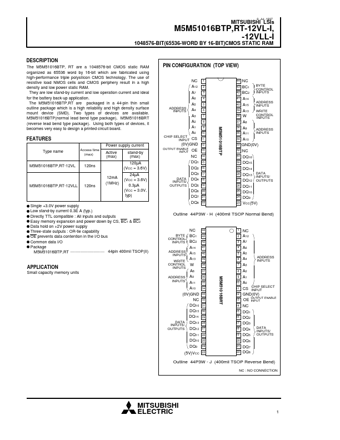

datasheet Preview Page 1 from Datasheet4u.com

M5M51016BRT-12VLL-I_MitsubishiElectricSemiconductor.pdf

M5M51016BRT-12VLL-I Datasheet Preview — Preview of M5M51016BRT-12VLL-I PDF

Datasheet Details

Part number:

M5M51016BRT-12VLL-I

Manufacturer:

Mitsubishi

File Size:

75.96 KB

Description:

1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

Features

* Power supply current Type name Access time (max) Active (max) stand-by (max) 120µA (VCC = 3.6V) M5M51016BTP,RT-12VL 120ns 12mA (1MHz) M5M51016BTP,RT-12VLL 120ns 24µA (VCC = 3.6V) 0.3µA (VCC = 3.0V, typ) Single +3.0V power supply Low stand-by current 0.3É A (typ. ) Directly TTL compatible : Al
