M5M51016BRT-10VL-I - 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

Mitsubishi

📥 Download Datasheet

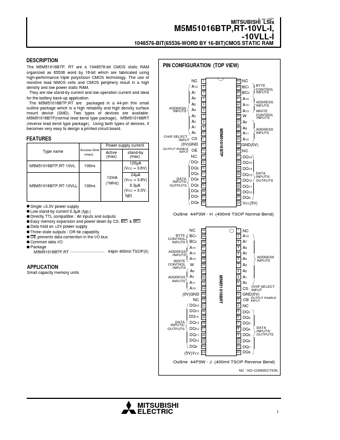

M5M51016BRT-10VL-I Datasheet Preview — Preview of M5M51016BRT-10VL-I PDF

Datasheet Details

Part number: M5M51016BRT-10VL-I
Manufacturer: Mitsubishi
File Size: 76.21 KB
Datasheet: M5M51016BRT-10VL-I_MitsubishiElectricSemiconductor.pdf
Description: 1048576-BIT(65536-WORD BY 16-BIT)CMOS STATIC RAM

M5M51016BRT-10VL-I Product details

Description

The M5M51016BTP, RT are a 1048576-bit CMOS static RAM organized as 65536 word by 16-bit which are fabricated using high-performance triple polysilicon CMOS technology.

Features

Power supply current Type name Access time (max) Active (max) stand-by (max) 120µA (VCC = 3.6V) M5M51016BTP,RT-10VL 100ns 12mA (1MHz) M5M51016BTP,RT-10VLL 100ns 24µA (VCC = 3.6V) 0.3µA (VCC = 3.0V, typ) Single +3.3V power supply Low stand-by current 0.3µA (typ. ) Directly TTL compatible : All inputs and outputs Easy memory expansion and power down by CS, BC1 & BC2 Data hold on +2V power supply Three-state outputs : OR-tie capability OE prevents data contention in the I/O bus Common data I.
