M5M5V416BTP Datasheet - Mitsubishi

M5M5V416BTP - 4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM

The M5M5V416B is a f amily of low v oltage 4-Mbit static RAMs organized as 262,144-words by 16-bit, f abricated by Mitsubishi's high-perf ormance 0.25µm CMOS technology .

The M5M5V416B is suitable f or memory applications where a simple interf acing , battery operating and battery backup are the imp

M5M5V416BTP Features

* Notice: This is not a final specification. Some parametric limits are subject to change 4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM Single +2.7~+3.6V power supply Small stand-by current: 0.3µA(3V,ty p.) No clocks, No ref resh Data retention supply v oltage=2.0V to 3.6V All inputs and outp

M5M5V416BTP_MitsubishiElectricSemiconductor.pdf

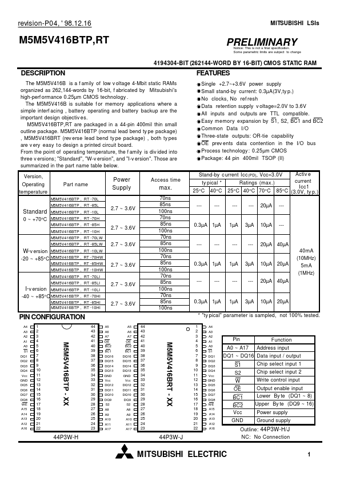

Preview of M5M5V416BTP PDF
M5M5V416BTP Datasheet Preview Page 2 M5M5V416BTP Datasheet Preview Page 3

Datasheet Details

Part number:

M5M5V416BTP

Manufacturer:

Mitsubishi

File Size:

110.36 KB

Description:

4194304-bit (262144-word by 16-bit) cmos static ram.
