M5M5V416BWG

4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM

M5M5V416BWG Features

* Single +2.7~+3.6V power supply Small stand-by current: 0.3µA(3V,ty p.) No clocks, No ref resh Data retention supply v oltage =2.0V to 3.6V All inputs and outputs are TTL compatible. Easy memory expansion by S1, S2, BC1 and BC2 Common Data I/O Three-state outputs: OR-tie capability OE prev ents data

M5M5V416BWG General Description

The M5M5V416B is a f amily of low v oltage 4-Mbit static RAMs organized as 262,144-words by 16-bit, f abricated by Mitsubishi's high-perf ormance 0.25µm CMOS technology . The M5M5V416B is suitable f or memory applications where a simple interf acing , battery operating and battery backup are the imp.

M5M5V416BWG Datasheet (107.10 KB)

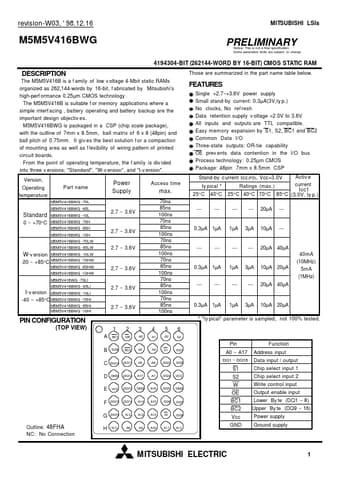

Preview of M5M5V416BWG PDF

Datasheet Details

Part number:

M5M5V416BWG

Manufacturer:

Mitsubishi

File Size:

107.10 KB

Description:

4194304-bit (262144-word by 16-bit) cmos static ram.
