M5M5V416WG-70LI, 4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM

revision-W03, ' 98.12.16 MITSUBISHI LSIs M5M5V416BWG .
The M5M5V416B is a f amily of low v oltage 4-Mbit static RAMs organized as 262,144-words by 16-bit, f abricated by Mitsubishi's high-perf ormance 0.

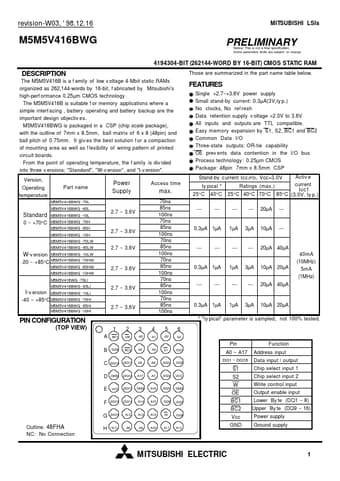

datasheet Preview Page 1 from Datasheet4u.com

M5M5V416WG-70LI_MitsubishiElectricSemiconductor.pdf

M5M5V416WG-70LI Datasheet Preview — Preview of M5M5V416WG-70LI PDF

Datasheet Details

Part number:

M5M5V416WG-70LI

Manufacturer:

Mitsubishi

File Size:

107.10 KB

Description:

4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM

Features

* Single +2.7~+3.6V power supply Small stand-by current: 0.3µA(3V,ty p. ) No clocks, No ref resh Data retention supply v oltage =2.0V to 3.6V All inputs and outputs are TTL compatible. Easy memory expansion by S1, S2, BC1 and BC2 Common Data I/O Three-state outputs: OR-tie capability OE prev ents data

Applications

* where a simple interf acing , battery operating and battery backup are the important design objectiv es. M5M5V416BWG is packaged in a CSP (chip scale package), with the outline of 7mm x 8.5mm, ball matrix of 6 x 8 (48pin) and ball pitch of 0.75mm. It giv es the best solution f or a compaction of mou
