M5M5Y416CWG-70HI

4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM

M5M5Y416CWG-70HI Features

* Single 1.65~2.3V power supply Small stand-by current: 0.2µA (2.0V, ty p.) No clocks, No ref resh Data retention supply v oltage =1.3V All inputs and outputs are TTL compatible. Easy memory expansion by S1, S2, BC1 and BC2 Common Data I/O Three-state outputs: OR-tie capability OE prev ents data conte

M5M5Y416CWG-70HI General Description

The M5M5Y416C is a f amily of low v oltage 4-Mbit static RAMs organized as 262144-words by 16-bit, f abricated by Mitsubishi's high-perf ormance 0.18µm CMOS technology . The M5M5Y416C is suitable f or memory applications where a simple interf acing , battery operating and battery backup are the impo.

M5M5Y416CWG-70HI Datasheet (87.70 KB)

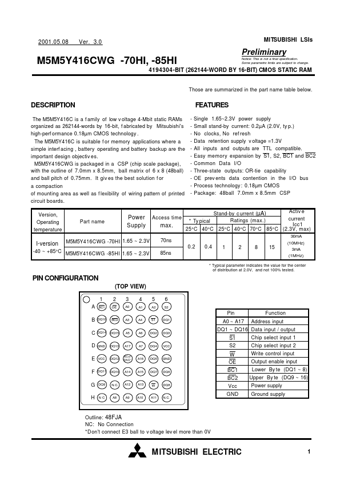

Preview of M5M5Y416CWG-70HI PDF

Datasheet Details

Part number:

M5M5Y416CWG-70HI

Manufacturer:

Mitsubishi

File Size:

87.70 KB

Description:

4194304-bit (262144-word by 16-bit) cmos static ram.
2001.05.08 Ver. 3.0 MITSUBISHI LSIs Preliminary M5M5Y416CWG -70HI, -85HI Notice: This is not a final specification. Some parametric limits are su.
