M5M5Y5636TG-20 Datasheet, Sram, Mitsubishi

M5M5Y5636TG-20 Features

• Sram
• Fully registered inputs and outputs for pipelined operation
• Fast clock speed: 250, 225, and 200 MHz
• Fast access time: 2.6, 2.8, 3.2 ns
• Single 1.8

PDF File Details

Part number:

M5M5Y5636TG-20

Manufacturer:

Mitsubishi

File Size:

212.63kb

Download:

📄 Datasheet

Description:

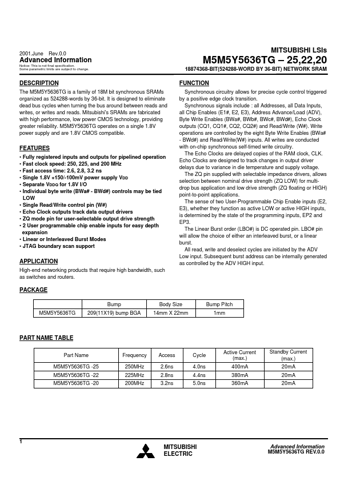

18874368-bit(524288-word by 36-bit) network sram. The M5M5Y5636TG is a family of 18M bit synchronous SRAMs organized as 524288-words by 36-bit. It is designed to eliminate dead bus cy

M5M5Y5636TG-20 Application

• Applications The sense of two User-Programmable Chip Enable inputs (E2, E3), whether they function as active LOW or active HIGH inputs, is determin
