M5M5Y416CWG-85HI - 4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM

Mitsubishi

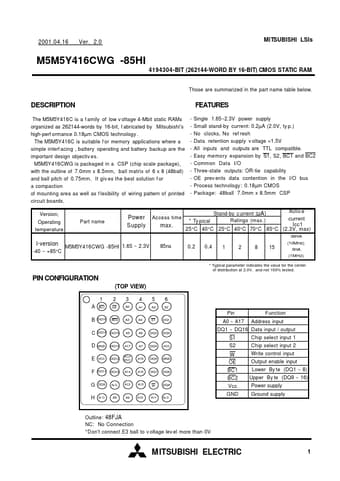

M5M5Y416CWG-85HI Datasheet Preview — Preview of M5M5Y416CWG-85HI PDF

Datasheet Details

Part number	M5M5Y416CWG-85HI
Manufacturer	Mitsubishi
File Size	82.86 KB
Description	4194304-BIT (262144-WORD BY 16-BIT) CMOS STATIC RAM
Datasheet	M5M5Y416CWG-85HI_MitsubishiElectricSemiconductor.pdf

M5M5Y416CWG-85HI Product details

Description

The M5M5Y416C is a f amily of low v oltage 4-Mbit static RAMs organized as 262144-words by 16-bit, f abricated by Mitsubishi's high-perf ormance 0.18µm CMOS technology .

Features

Single 1.65~2.3V power supply Small stand-by current: 0.2µA (2.0V, ty p. ) No clocks, No ref resh Data retention supply v oltage =1.5V All inputs and outputs are TTL compatible. Easy memory expansion by S1, S2, BC1 and BC2 Common Data I/O Three-state outputs: OR-tie capability OE prev ents data contention in the I/O bus Process technology : 0.18µm CMOS Package: 48ball 7.0mm x 8.5mm CSP Power Supply Access time max. Activ e current Icc1 25°C 40°C 25°C 40°C 70°C 85°C (2.3V, max) Stand-by c urre.
