M61500FP

TONE CONTROL/VOLUME CONTROL

M61500FP Features

* Built-in "QSurround" sound technology Electronic volume. 0 ~ -84dB, infinitesimal 2-band tone control Bass(0 ~ +21dB/3dB STEP) Treble(0 ~ +9dB/3dB STEP) 5 input selector(The fifth input can be used as REC OUT or MIC MIX.) RECOMMENDED OPERATING CONDITIONS Supply voltage range + 2.25~+ 2.75V SYSTEM

M61500FP General Description

The M61500FP is the sound controller powerd by "QSurround" system. The "QSurround" system decodes and virtualize multi-speaker surround sound from various matrix surround encoded sources: Dolby Surround, stereo downmixed AC-3, stereo downmixed DTS. P roduces normal and wide 3D sound expansion from a.

M61500FP Datasheet (89.67 KB)

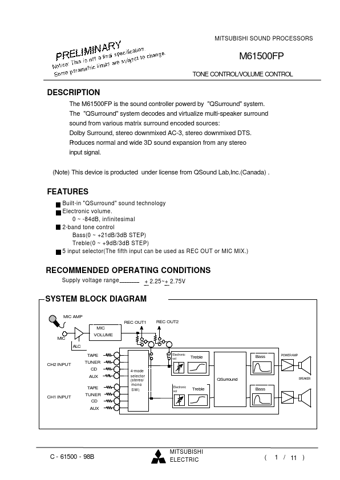

Preview of M61500FP PDF

Datasheet Details

Part number:

M61500FP

Manufacturer:

Mitsubishi

File Size:

89.67 KB

Description:

Tone control/volume control.
