M61524FP Datasheet - Hitachi

2ch ELECTRONIC VOLUME WITH 4 INPUT SELECTOR

M61524FP Features

* Function Input selector Input gain control Karaoke mode MIC MIX REC Output Surround Main Volume FEATURES 4input selector MUTE 0,+3,+6,+9dB Stereo, Lch mono, Rch mono, Vocal cut Mixing before the output of REC MIC amp:+6dB, With the MIC SWs LRch each one output With the ON/OFF SWs 0 -90dB, -∞/1dB ste

M61524FP General Description

Pin No. 1 2 3,4,5,6, 37,38,39,40 7 8,35 9,34 10,11,12,13,14, 29,30,31,32,33 15,28 16,27 17,18,25,26 19,24 20 21 22 23 36 41,42 Terminal name REFIN REFOUT INA~IND VCUT REC AVOLIN TBI,TBO,TMI,TMO,TT TOUT BVOLIN BB_A,BB_B OUT VCC DATA CLOCK GND MICIN SUR Function Input pin of reference Amp Output pin o.

M61524FP Datasheet (301.21 KB)

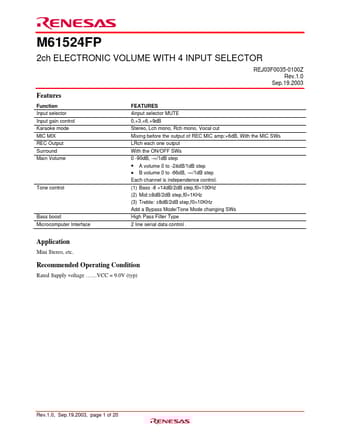

Preview of M61524FP PDF
