M61533FP

4ch Electronic Volume with AGC

Hitachi

M61533FP Features

* Function Electric Volume Feature

* 0 to -87dB, -∞/1dBstep

* 4ch SL/SR/C/SW independent Electric Volume

* Controlled by trim volume data + master volume data. Vc=1.8Vrms Can be set externally 0, +6, +9, +12dB 4step Controlled by serial data from microcompu

M61533FP General Description

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Name SLIN N.C. N.C. SRIN CIN SWIN VCC DATA CLOCK GND AGC SWLPF1 COUT SROUT SLOUT REFOUT REFIN SWOUT N.C. SWLPF2 Function SLch volume input pin N.C. N.C. SRch volume input pin Cch volume input pin SWch volume input pin Power supply (Typ:9V) I.

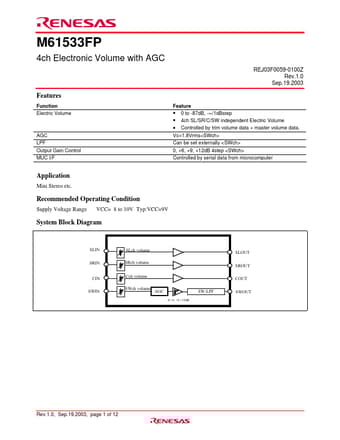

M61533FP Datasheet (374.91 KB)

M61533FP Datasheet Preview — Preview of M61533FP PDF

Datasheet Details

Part number:

M61533FP

Manufacturer:

Hitachi

File Size:

374.91 KB

Description:

4ch electronic volume with agc.
