M61539FP - 6ch Electronic Volume

M61539FP Description

www.DataSheet4U.com M61539FP 6ch Electronic Volume with Tone Control REJ03F0112-0100Z Rev.1.0 Apr.16.2004 .
The M61539FP is 6ch electronic volume with tone control. 6ch Electronic volume Volume.

M61539FP Features

* 6ch Electronic volume Volume level: 0 to-95dB(1dB/step)
* Tone control Bass/Treble:-14dB to +14dB(2dB/step)
* Noise voltage: 1.5µVrms
* Bypass mode is high quality sound. Recommended Operating Conditions
* Supply voltage range: 4.5 to ±7.5V (analog) 4.5 to

📥 Download Datasheet

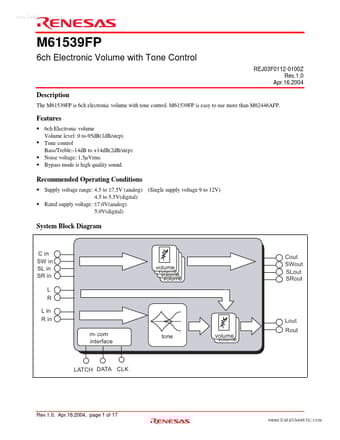

Preview of M61539FP PDF
datasheet Preview Page 2 datasheet Preview Page 3
