M61545AFP

Serial Data Control Dual Electronic Volume

M61545AFP Features

* Electronic volume

* 0 to

* 95dB/ 1-dB step,

* ∞dB 2-ch independent controllable electronic volume Low distortion THD = 0.002% typ. Vno = 5.0μVrms typ. (ATT =

* ∞, JIS-A network) Supply voltage range Single power

M61545AFP General Description

The M61545AFP is a dual channel electronic volume controlled with 2-wire serial data. The built-in reference and power regulator circuitries allow operation of an electronic volume with less external parts. M61545AFP is able to cater for large supply voltage range of 4.5 to 15.0V. www.DataSheet4U.co.

M61545AFP Datasheet (342.34 KB)

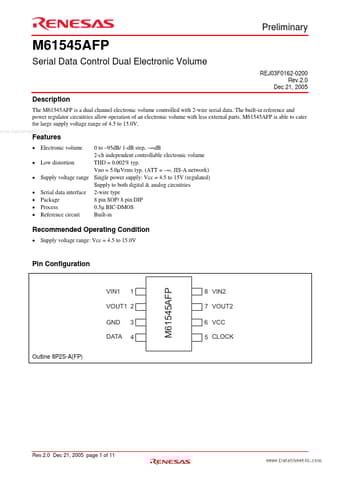

Preview of M61545AFP PDF

Datasheet Details

Part number:

M61545AFP

Manufacturer:

Renesas ↗ Technology

File Size:

342.34 KB

Description:

Serial data control dual electronic volume.
