M61540FP - 6ch Electronic Volume

Product Overview

Renesas

📥 Download Datasheet

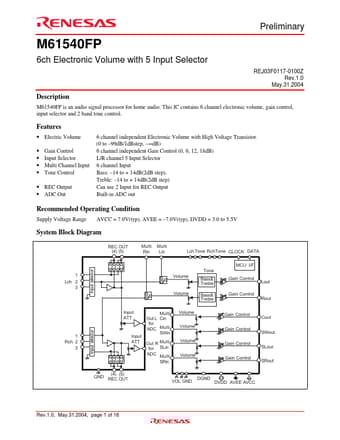

M61540FP 6ch Electronic Volume by Renesas - Datasheet Preview — Datasheet preview – M61540FP

Datasheet Details

Part number	M61540FP
Manufacturer	Renesas
File Size	149.56 KB
Description	6ch Electronic Volume
Datasheet	M61540FP Datasheet
Additional preview pages of the M61540FP datasheet.

Product details

Description

M61540FP is an audio signal processor for home audio.

Features

Electric Volume.
Gain Control.
Input Selector.
Multi Channel Input.
Tone Control.
REC Output.
ADC Out 6 channel independent Electronic Volume with High Voltage Transistor. (0 to.
99dB/1dBstep,.
∞dB) 6 channel independent Gain Control (0, 6, 12, 18dB) L/R channel 5 Input Selector 6 channel Input Bass:.
14 to + 14dB(2dB step), Treble:.
14 to + 14dB(2dB step) Can use 2 Input for REC Output Built-in ADC.
