M61530FP - 4ch Electronic Volume

M61530FP Description

www.DataSheet4U.com M61530FP 4ch Electronic Volume with 5.1ch Analog Input REJ03F0058-0100Z Rev.1.0 Sep.19.2003 .
The M61530FP is a four-channel volume IC which is optimal for combination with the M61519FP two-channel electronic volume.

M61530FP Features

* Function names Main volume control Low pass filter (LPF) AGC Bass boost Output gain control Input gain control Microcomputer I/F Features 0 to
* 87 dB in 1-dB steps,
* ∞ Four independently controlled volumes (SL, SR, C, LFE) On-chip operational amplifiers for configuration of post-filt

📥 Download Datasheet

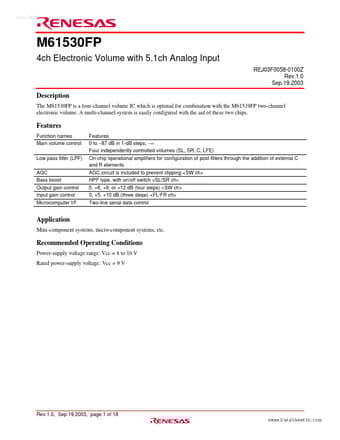

Preview of M61530FP PDF
datasheet Preview Page 2 datasheet Preview Page 3
