M61528FP Datasheet - Hitachi

SCF TYPE FIXED EQUALIZER FOR CAR AUDIO

M61528FP Features

* Fixed equalizer(3 bands equalizer with SCF)  4 independent fixed equalizer controls.  Reduce the external C,R parts by using SCF (Switched Capacitor Filter) technology.

* FADER  4 independent fader controls.  0dB to

* 50dB/2dBstep, -∞dB  Built-in Soft-changing circuit f

M61528FP General Description

Pin No. 3 4 5 6 23 22 21 20 2,19 7,18 24 1 8 15 14 13 12 17 16 9 to 11 Name FLIN FRIN RLIN RRIN FLOUT FROUT RLOUT RROUT GND DGND VCC VREFIN TEST SACTIVE OSCIN OSCOUT OSCR DATA CLOCK N.C Function Input pin of FRONT L channel Input pin of FRONT R channel Input pin of REAR L channel Input pin of REAR R.

M61528FP Datasheet (306.57 KB)

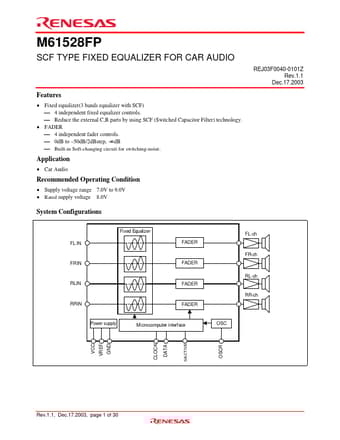

M61528FP Datasheet Preview — Preview of M61528FP PDF

Datasheet Details

Part number:

M61528FP

Manufacturer:

Hitachi

File Size:

306.57 KB

Description:

Scf type fixed equalizer for car audio.
