M61538FP - 6-Channel Electronic Volume

Product Overview

Hitachi

📥 Download Datasheet

M61538FP 6-Channel Electronic Volume by Hitachi - Datasheet Preview — Datasheet preview – M61538FP

Datasheet Details

Part number	M61538FP
Manufacturer	Hitachi
File Size	132.34 KB
Description	6-Channel Electronic Volume
Datasheet	M61538FP Datasheet

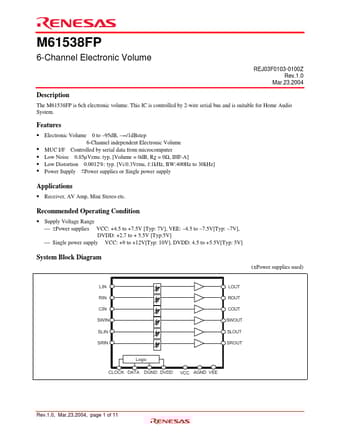

Additional preview pages of the M61538FP datasheet.

Product details

Description

The M61538FP is 6ch electronic volume.

Features

Electronic Volume.
0 to.
95dB,.
∞/1dBstep 6-Channel independent Electronic Volume MUC I/F Controlled by serial data from microcomputer Low Noise 0.85µVrms: typ. [Volume = 0dB, Rg = 0Ω, IHF-A] Low Distortion 0.0012%: typ. [Vi:0.3Vrms, f:1kHz, BW:400Hz to 30kHz] Power Supply ±Power supplies or Single power supply.
