M61529FP - Audio Signal Processor with Surround

Product Overview

Hitachi

📥 Download Datasheet

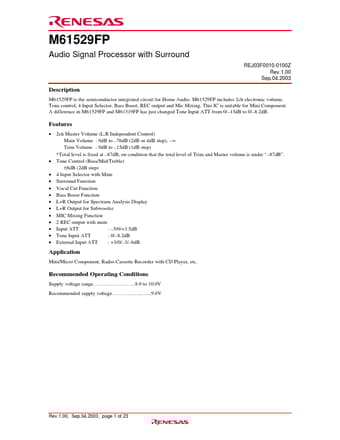

M61529FP Audio Signal Processor with Surround by Hitachi - Datasheet Preview — Datasheet preview – M61529FP

Datasheet Details

Part number	M61529FP
Manufacturer	Hitachi
File Size	442.09 KB
Description	Audio Signal Processor with Surround
Datasheet	M61529FP Datasheet
Additional preview pages of the M61529FP datasheet.

Product details

Description

M61529FP is the semiconductor integrated circuit for Home Audio. 13dB to 0/ 8.2dB.

Features

2ch Master Volume (L,R Independent Control) Main Volume : 0dB to.
76dB (2dB or 4dB step),.
∞ Trim Volume : 0dB to.
15dB (1dB step).
Total level is fixed at.
87dB, on condition that the total level of Trim and Master volume is under “.
87dB”.
Tone Control (Bass/Mid/Treble) ±8dB (2dB step).
4 Input Selector with Mute.
Surround Function.
Vocal Cut Function.
Bass Boost Function.
L+R Output for.
