M61515FP

TONE CONTROL/VOLUME CONTROL

M61515FP Features

* Built-in "QSurround" sound technology Electronic volume. 0 ~ -84dB, infinitesimal 2-band tone control Bass(0 ~ +21dB/3dB STEP) Treble(0 ~ +9dB/3dB STEP) 5 input selector(The fifth input can be used as REC OUT or MIC MIX.) RECOMMENDED OPERATING CONDITIONS Supply voltage range ± 2.25 ~ ± 2.75V SYSTE

M61515FP General Description

The M61515FP is the sound controller powered by "QSurround" system. The "QSurround" system decodes and virtualizes multi-speaker surround sound from various matrix surround encoded sources such as: Dolby Surround, stereo downmixed AC-3, stereo downmixed DTS. Produces normal and wide 3D sound expansi.

M61515FP Datasheet (259.18 KB)

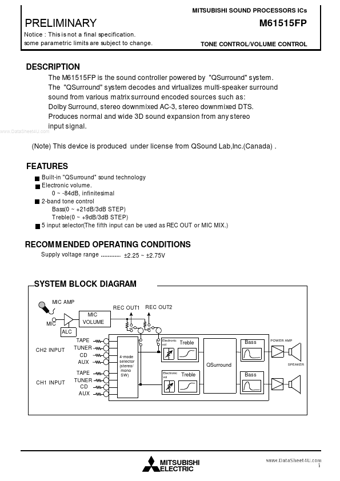

Preview of M61515FP PDF

Datasheet Details

Part number:

M61515FP

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

259.18 KB

Description:

Tone control/volume control.
MITSUBISHI SOUND PROCESSORS ICs PRELIMINARY Notice : This is not a final specification. some parametric limits are subject to change. M61515FP TONE .
