M61519FP - AUDIO SIGNAL PROCESSOR WITH SURROUND

M61519FP Description

MITSUBISHI SOUND PROCESSOR ICs M61519FP AUDIO SIGNAL PROCESSOR WITH SURROUND .
M61519FP is the semiconductor integrated circuit for Home Audio.

M61519FP Features

* 2ch Master Volume (L,R Independent Control) Main Volume : 0dB to
* 76dB (2dB or 4dB step), -∞ Trim Volume : 0dB to
* 15dB (1dB step)
* Tone Control (Bass/Mid/Treble) ±8dB(2dB step)
* 4 Input Selector with Mute
* Surround Function
* Vocal Cut Fu

📥 Download Datasheet

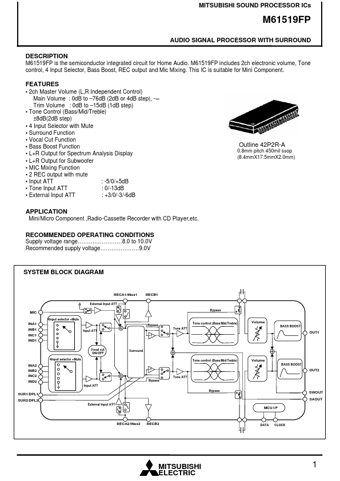

Preview of M61519FP PDF
datasheet Preview Page 2 datasheet Preview Page 3
