M61316SP, M61311SP Datasheet - Mitsubishi Electric Semiconductor

M61316SP (M61311SP / M61316SP) I2C BUS CONTROLLED VIDEO PRE-AMP

M61311SP/M61316SP is Semiconductor Integrated Circuit for CRT Display Monitor. It includes OSD Blanking, OSD Mixing, Retrace Blanking, Video Detector, Sync Separator, Wide Band Amplifier, Brightness Control. Main/Sub Contrast, Video Response Adjust, Ret BLK Adjust, 4ch D/A OUT and OSD level Adjust F.

M61316SP Features

* Frequency Band Width RGB: OSD: Input RGB: OSD: OSD BLK: Retrace BLK: Clamp Pulse: Output RGB: 5Vp-p (at Brightness less than 2VDC) OSD: 4Vp-p (at Brightness less than 2VDC) Sync OUT: 5Vp-p Video Det OUT: High = 4.2VDC , Low = 0.7VDC 0.7Vp-p (typical) 3.5V

* - 5.0V (positive) 3.5V

* - 5

M61311SP_MitsubishiElectricSemiconductor.pdf

This datasheet PDF includes multiple part numbers: M61316SP, M61311SP. Please refer to the document for exact specifications by model.

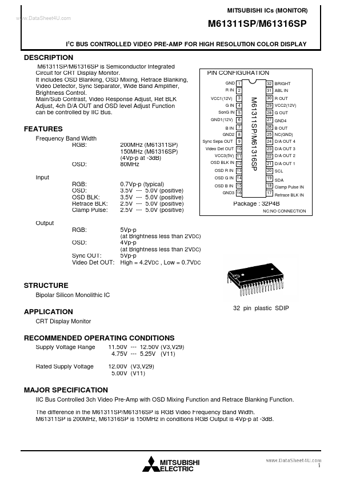

M61316SP Datasheet Preview Page 2 M61316SP Datasheet Preview Page 3

Datasheet Details

Part number:

M61316SP, M61311SP

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

250.66 KB

Description:

(m61311sp / m61316sp) i2c bus controlled video pre-amp.

Note:

This datasheet PDF includes multiple part numbers: M61316SP, M61311SP.
Please refer to the document for exact specifications by model.
