M61323FP - WIDE FREQUENCY BAND ANALOG SWITCH

M61323FP Description

MITSUBISHI ICs M61323SP/FP WIDE FREQUENCY BAND ANALOG SWITCH .
The M61323SP/FP is a semiconductor integrated circuit for the RGBHV interface.

M61323FP Features

* switching signals input from two types of image sources and outputting the signals to the CRT display,etc. Synchronous signals, meeting a frequency band of 10KHz to 200KHz, are output at TTL. The frequency band of video signals is 250MHz, acquiring high-resolution images, and are optimum as an inter

📥 Download Datasheet

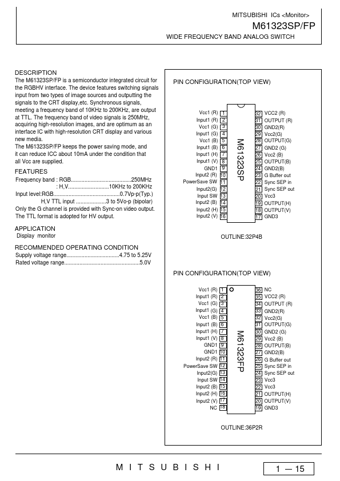

Preview of M61323FP PDF
datasheet Preview Page 2 datasheet Preview Page 3
