M61314SP Datasheet, Pre-amp, Mitsubishi Electric Semiconductor

M61314SP Features

  • Pre-amp Frequency Band Width RGB: 180MHz (3Vp-p at -3dB) OSD: 80MHz Input RGB: 0.7Vp-p(typical) OSD: 3.5V~5V(positive) OSD BLK: 3.5V~5V(positive) Retrace BLK: 2.5V~5V(positive) Clamp Pulse: 2.5

PDF File Details

Part number:

M61314SP

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

362.93kb

Download:

📄 Datasheet

Description:

I2c bus controlled video pre-amp. M61314SP is Semiconductor Integrated Circuit for CRT Display Monitor. It includes OSD Blanking,OSD Mixing,Retrace Blanking,Video dete

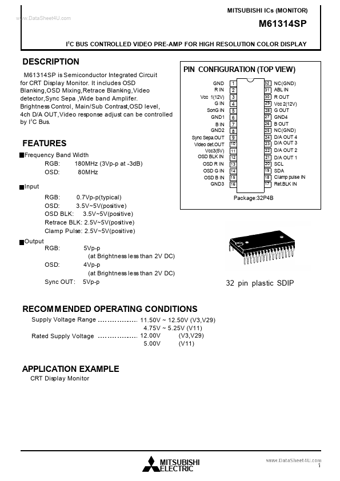

Datasheet Preview: M61314SP 📥 Download PDF (362.93kb)
