M65665

PICTURE-IN-PICTURE SIGNAL PROCESSING

M65665 Features

* Internal V-chip data slicer (f or sub-picture) NOTICE: Connect a 0.1µF or larger capacitor between VDD and VSS pins. Vertical f ilter f or sub-picture ( Y signal )

* 1 : Include pin capacitance ( 7 pF ) Base band comb f ilter (2 Line) Single sub-picture ( selectable

M65665 General Description

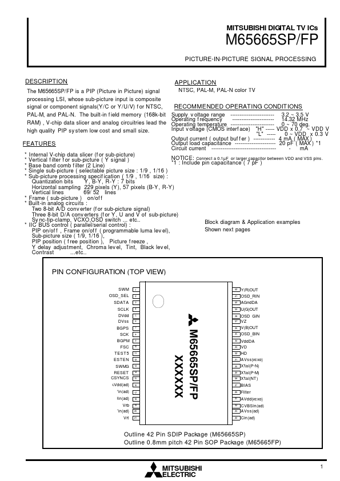

The M65665SP/FP is a PIP (Picture in Picture) signal processing LSI, whose sub-picture input is composite signal or component signals(Y /C or Y /U/V) f or NTSC, PAL-M, and PAL-N. The built-in f ield memory (168k-bit RAM) , V-chip data slicer and analog circuitries lead the high quality PIP sy stem l.

M65665 Datasheet (266.13 KB)

Preview of M65665 PDF

Datasheet Details

Part number:

M65665

Manufacturer:

Mitsubishi

File Size:

266.13 KB

Description:

Picture-in-picture signal processing.
