M65667SP Datasheet - Mitsubishi

M65667SP PICTURE-IN-PICTURE SIGNAL PROCESSING

The M65667SP is a NTSC PIP (Picture in Picture) signal processing LSI, whose sub and main-picture inputs are composite and Y/C separated signals, respectively. The built-in field memory (96k-bit RAM) ,V-chip data slicer and analog circuitries lead the PIP system low cost and small size. PIN CONFIGUR.

M65667SP Features

* BIAS AVdd3 (vcxo) AVdd2 (m) Vin (m) Vrt (m) Vrb (m) AVss2 (m) AVdd1 (s) Vin (s) Vrt (s) Vrb (s) AVss1 (s) RESET DVss1 DVdd1 BGP(s)/TEST0

* Built-in 96k-bit field memory (sub-picture data storage) Internal V-chip data slicer (for sub-picture

M65667SP Datasheet (53.78 KB)

Preview of M65667SP PDF

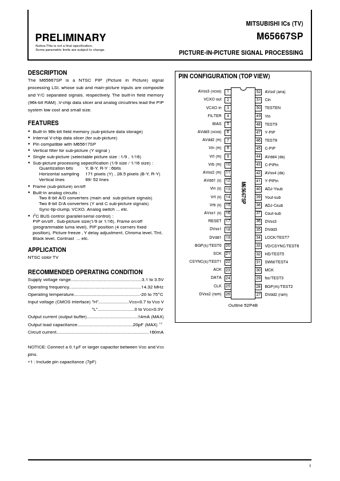

M65667SP Datasheet Preview Page 2 M65667SP Datasheet Preview Page 3

Datasheet Details

Part number:

M65667SP

Manufacturer:

Mitsubishi

File Size:

53.78 KB

Description:

Picture-in-picture signal processing.
