M65667FP - PICTURE-IN-PICTURE SIGNAL PROCESSING

Mitsubishi

📥 Download Datasheet

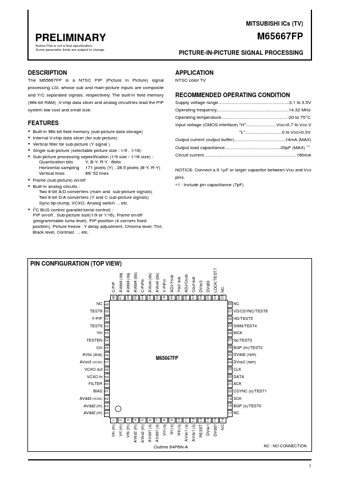

M65667FP Datasheet Preview — Preview of M65667FP PDF

Datasheet Details

Part number: M65667FP
Manufacturer: Mitsubishi
File Size: 59.39 KB
Datasheet: M65667FP_MitsubishiElectricSemiconductor.pdf
Description: PICTURE-IN-PICTURE SIGNAL PROCESSING

M65667FP Product details

Description

The M65667FP is a NTSC PIP (Picture in Picture) signal processing LSI, whose sub and main-picture inputs are composite and Y/C separated signals, respectively.

Features

Built-in 96k-bit ﬁeld memory (sub-picture data storage) Internal V-chip data slicer (for sub-picture) Vertical ﬁlter for sub-picture (Y signal ) Single sub-picture (selectable picture size : 1/9 , 1/16) Sub-picture processing sepeciﬁcation (1/9 size / 1/16 size) : Quantization bits Y, B-Y, R-Y : 6bits Horizontal sampling 171 pixels (Y) , 28.5 pixels (B-Y, R-Y) Vertical lines 69/ 52 lines Frame (sub-picture) on/of.
