M66290AGP Datasheet - Mitsubishi

USB DEVICE CONTROLLER

M66290AGP Features

* USB specif ication 1.1 compliant Built-in USB transceiv er circuit Supports Full Speed (12 Mbps) transmission Supports all f our USB transf er t y pe :

* Control transf er

* Bulk transf er

* Isochronous transf er

* Interrupt transf er

* Built-in FIFO (3 KB

M66290AGP General Description

The M66290A is a general purpose USB (Univ ersal Serial Bus) dev ice controller compatible with the USB specif ication v ersion 1.1 and corresponds to f ull speed transf er. Built-in transceiv er circuits meet all transf er ty pe which is def ined in USB. M66290A has FIFO of 3k By tes f or data tran.

M66290AGP Datasheet (435.92 KB)

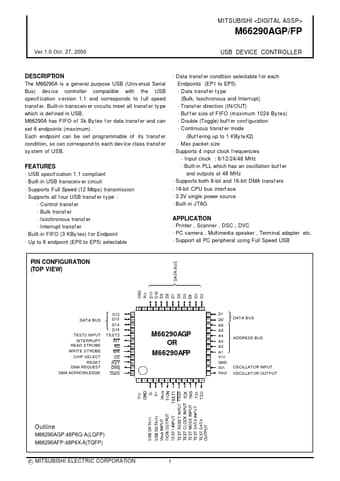

Preview of M66290AGP PDF

Datasheet Details

Part number:

M66290AGP

Manufacturer:

Mitsubishi

File Size:

435.92 KB

Description:

Usb device controller.
