M660-01 - Voltage Controlled SAW Oscillator

Datasheet Summary

Description

The M660-01 is a dual output (selectable output) SAW based voltage controlled oscillator for telecom applications.

An internal SAW provides jitter performance of less than 0.5psec (rms) over an operating temperature of -40 to +85°C.

Features

Frequency Select Feature (dual frequency capability) Industry Standard Package, 14 x 9 x 3.5 mm Output Frequencies from 125-175MHz 3.3 V Operation Low Jitter < 1.5ps rms (50kHz to 80MHz offset range) LVPECL Logic Levels with Fast Transition Times Complementary Outputs Control Voltage Frequency Select 1 2 M660-01 Series BLOCK.

Datasheet Details

Part number	M660-01
Manufacturer	Integrated Circuit Systems
File Size	552.21 KB
Description	Voltage Controlled SAW Oscillator
Datasheet	M660-01 Datasheet

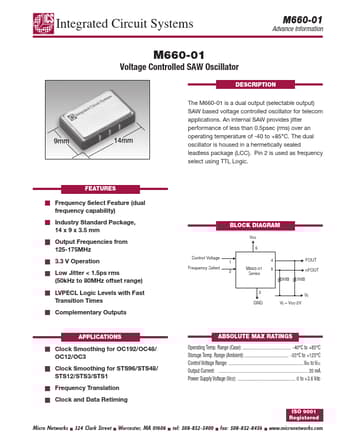

Additional preview pages of the M660-01 datasheet.

📁 Similar Datasheet

M66004FP - null16-DIGIT 5x7-SEGMENT VFD CONTROLLER (Mitsubishi)

M66004M6FP200D - C-MOS 7 Segments Fluorescent Display Controller (ETC)

M66004SP - null16-DIGIT 5x7-SEGMENT VFD CONTROLLER (Mitsubishi)

M66006FP - 12-BIT I/O EXPANDER (Mitsubishi)

M66006P - 12-BIT I/O EXPANDER (Mitsubishi)

M66007FP - 12-BIT INPUT EXPANDER (Mitsubishi)

M66007P - 12-BIT INPUT EXPANDER (Mitsubishi)

M66008FP - 16-BIT I/O EXPANDER (Mitsubishi)

M66008P - 16-BIT I/O EXPANDER (Mitsubishi)

M66009FP - 8-BIT I/O EXPANDER WITH 5-BIT ADDRESS (Mitsubishi)

Full PDF Text Transcription

Click to expand full text

Integrated Circuit Systems M660-01 Voltage Controlled SAW Oscillator M660-01 Advance Information DESCRIPTION 9mm 14mm The M660-01 is a dual output (selectable output) SAW based voltage controlled oscillator for telecom applications. An internal SAW provides jitter performance of less than 0.5psec (rms) over an operating temperature of -40 to +85°C. The dual oscillator is housed in a hermetically sealed leadless package (LCC). Pin 2 is used as frequency select using TTL Logic. FEATURES Frequency Select Feature (dual frequency capability) Industry Standard Package, 14 x 9 x 3.5 mm Output Frequencies from 125-175MHz 3.3 V Operation Low Jitter < 1.
