M66008FP

16-BIT I/O EXPANDER

M66008FP Features

* Two-way serial data communication with MCU

* Reading of serial data during parallel-serial data conversion

* Division of I/O bit in parallel data input/output

* Low power consumption of 50 µW/package maximum (Vcc=5V, Ta=25°C at time of standstill)

* Schmitt

M66008FP General Description

The M66008 is a semiconductor integrated circuit providing the 16-bit serial input-parallel output and parallel input-serial output shift register function. Independent built-in registers for serial input-parallel output and parallel input-serial output enable serial input data to be read into a shi.

M66008FP Datasheet (107.03 KB)

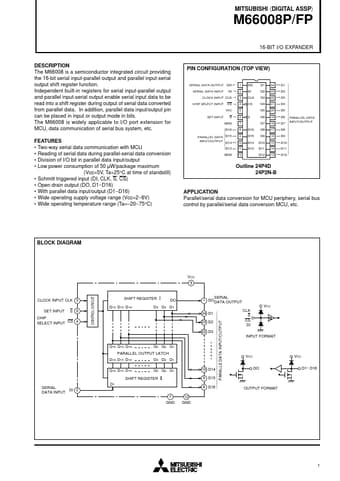

Preview of M66008FP PDF

Datasheet Details

Part number:

M66008FP

Manufacturer:

Mitsubishi

File Size:

107.03 KB

Description:

16-bit i/o expander.
