M66006P - 12-BIT I/O EXPANDER

Datasheet Summary

Description

The M66006 is a semiconductor integrated circuit which has 12-bit shift register function to execute serial-parallel conversion and parallel-serial conversion.

Features

  • Bi-directional serial data communication with MCU.
  • Read of serial data during parallel-serial conversion.
  • Bit resolution of serial data I/O.
  • Low power dissipation (50µW/package max. ) (VCC=5V, Ta =25°C, in quiescing).
  • Schmitt input (DI, CLK, S, CS).
  • Open drain output (DO, from D1 to D12).
  • Parallel data I/O (from D1 to D12).
  • Wide operating supply voltage range (VCC=2 to 6V).
  • Wide operating temperature range (Ta =.

📥 Download Datasheet

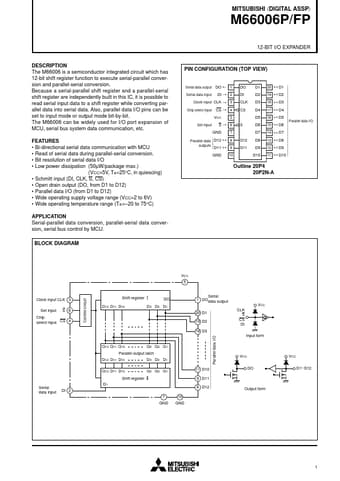

Datasheet preview – M66006P

Datasheet Details

Part number M66006P
Manufacturer Mitsubishi
File Size 102.35 KB
Description 12-BIT I/O EXPANDER
Datasheet download datasheet M66006P Datasheet
Additional preview pages of the M66006P datasheet.

📁 Similar Datasheet

  • M66004M6FP200D - C-MOS 7 Segments Fluorescent Display Controller (ETC)
  • M660 - DUAL SAW / SELECTABLE FREQUENCY VCSO (Integrated Circuit Systems)
  • M660-01 - Voltage Controlled SAW Oscillator (Integrated Circuit Systems)
  • M660-02 - DUAL SAW / SELECTABLE FREQUENCY VCSO (Integrated Circuit Systems)
  • M66013FP - 8-bit I/O Expander (Renesas)
  • M6606 - MSM6606 (OKI)
  • M66 - IMPLE MELODY GENERATOR (Micro Electronics)
  • M6611 - AC Timer (MOSDESIGN)
  • M66282FP - 8192 x 8-Bit Line Memory (Renesas)
  • M66291GP - ASSP (USB2.0 Device Controller) (Renesas)
Other Datasheets by Mitsubishi

Full PDF Text Transcription

Click to expand full text
MITSUBISHI MITSUBISHI 〈DIGITAL 〈DIGITAL ASSP ASSP 〉 〉 M66006P/FP M66006P/FP 12-BIT I/O EXPANDER 12-BIT I/O EXPANDER DESCRIPTION The M66006 is a semiconductor integrated circuit which has 12-bit shift register function to execute serial-parallel conversion and parallel-serial conversion. Because a serial-parallel shift register and a parallel-serial shift register are independently built in this IC, it is possible to read serial input data to a shift register while converting parallel data into serial data. Also, parallel data I/O pins can be set to input mode or output mode bit-by-bit. The M66006 can be widely used for I/O port expansion of MCU, serial bus system data communication, etc.
