M660

DUAL SAW / SELECTABLE FREQUENCY VCSO

M660 Features

* M660-01 output frequencies from 125 to 175 MHz

* M660-02 output frequencies from 500 to 700 MHz (Specify center frequency at time of order) Two integrated SAW devices Selectable output frequency Supports multi-ra

M660 General Description

The M660-01 is a dual SAW, selectable frequency VCSO for low-jitter clock generation. An integrated SAW (surface acoustic wave) delay line implements the high-Q VCO (voltage controlled oscillator) function, which results in low output phase noise and very low jitter. The M660-01 is available in a ra.

M660 Datasheet (59.33 KB)

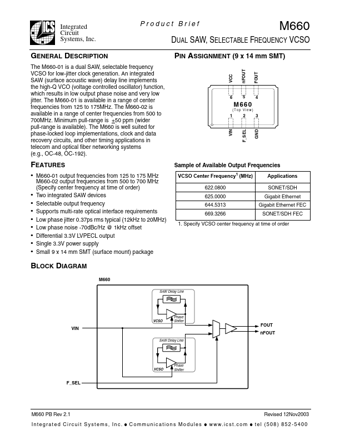

Preview of M660 PDF

Datasheet Details

Part number:

M660

Manufacturer:

Integrated Circuit Systems

File Size:

59.33 KB

Description:

Dual saw / selectable frequency vcso.
Integrated Circuit Systems, Inc. Product Brief M660 DUAL SAW, SELECTABLE FREQUENCY VCSO PIN ASSIGNMENT (9 x 14 mm SMT) nFOUT 5 FOUT 4 3 GND VCC 6 1.
