M66006FP - 12-BIT I/O EXPANDER

Product Overview

Mitsubishi

Datasheet Details

Part number	M66006FP
Manufacturer	Mitsubishi
File Size	102.35 KB
Description	12-BIT I/O EXPANDER
Datasheet	M66006FP Datasheet

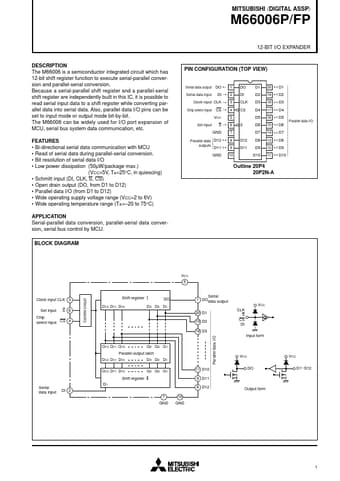

Additional preview pages of the M66006FP datasheet.

Product details

Description

The M66006 is a semiconductor integrated circuit which has 12-bit shift register function to execute serial-parallel conversion and parallel-serial conversion.

Features

Bi-directional serial data communication with MCU.
Read of serial data during parallel-serial conversion.
Bit resolution of serial data I/O.
Low power dissipation (50µW/package max. ) (VCC=5V, Ta =25°C, in quiescing).
Schmitt input (DI, CLK, S, CS).
Open drain output (DO, from D1 to D12).
Parallel data I/O (from D1 to D12).
Wide operating supply voltage range (VCC=2 to 6V).
Wide operating temperature range (Ta =.
