M66004SP - null16-DIGIT 5x7-SEGMENT VFD CONTROLLER

Product Overview

Mitsubishi

📥 Download Datasheet

M66004SP null16-DIGIT 5x7-SEGMENT VFD CONTROLLER by Mitsubishi - Datasheet Preview — Datasheet preview – M66004SP

Datasheet Details

Part number	M66004SP
Manufacturer	Mitsubishi
File Size	182.50 KB
Description	null16-DIGIT 5x7-SEGMENT VFD CONTROLLER
Datasheet	M66004SP Datasheet

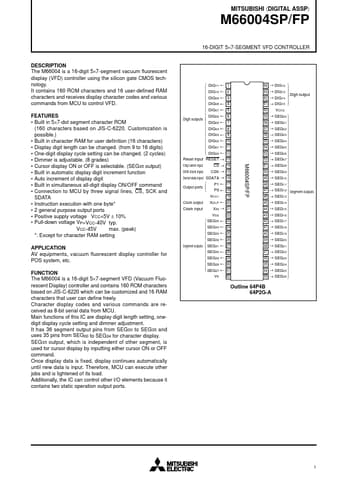

Additional preview pages of the M66004SP datasheet.

Product details

Description

The M66004 is a 16-digit 5×7-segment vacuum fluorescent display (VFD) controller using the silicon gate CMOS technology.

Features

Built in 5×7-dot segment character ROM (160 characters based on JIS-C-6220. Customization is possible. ).
Built in character RAM for user definition (16 characters).
Display digit length can be changed. (from 9 to 16 digits).
One-digit display cycle setting can be changed. (2 cycles).
Dimmer is adjustable. (8 grades).
Cursor display ON or OFF is selectable. (SEG35 output).
Built in automatic display digit increment function.
