M66335FP - FACSIMILE IMAGE DATA PROCESSOR

Mitsubishi

The M66335FP by Mitsubishi is a FACSIMILE IMAGE DATA PROCESSOR. Below is the official datasheet preview.

📥 Download Datasheet

M66335FP FACSIMILE IMAGE DATA PROCESSOR by Mitsubishi - Datasheet Preview — Official preview page of the **M66335FP** FACSIMILE IMAGE DATA PROCESSOR datasheet (Mitsubishi).

Datasheet Details

Part number	M66335FP
Manufacturer	Mitsubishi
File Size	656.42 KB
Description	FACSIMILE IMAGE DATA PROCESSOR
Datasheet	M66335FP_MitsubishiElectricSemiconductor.pdf

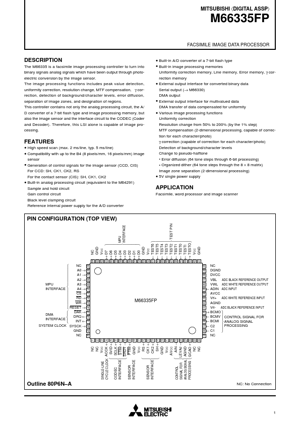

Additional preview pages of the M66335FP datasheet.

M66335FP Product details

Description

The M66335 is a facsimile image processing controller to turn into binary signals analog signals which have been output through photoelectric conversion by the image sensor.

Features

br>.
High speed scan (max. 2 ms/line, typ. 5 ms/line).
Compatibility with up to the B4 (8 pixels/mm, 16 pixels/mm) image.
sensor Generation of control signals for the image sensor (CCD, CIS) For CCD: SH, CK1, CK2, RS For the contact sensor (CIS): SH, CK1, CK2 Built-in analog processing circuit (equivalent to the M64291) Sample and hold circuit Gain control circuit Black level clamping circuit Reference internal power supply for the A/D converter.
Uniformity.
