M66510FP Datasheet - Mitsubishi

LASER-DIODE DRIVER

M66510FP Features

* Built-in two outputs for monitoring laser power (comparator output and analog output)

* With laser driving current forced off pin

* High-speed switching (20M bits/s)

* High driving current (120mA max.)

* 5V single power supply APPLICATION Laser beam printer

M66510FP General Description

The M66510 is a semiconductor laser diode driver that drives a semiconductor laser of the type whose cathode and the anode of monitor photodiode are connected to the stem. Laser driving current of up to 120mA can be set by applying constant voltage from outside to drive the laser diode. It operates .

M66510FP Datasheet (224.62 KB)

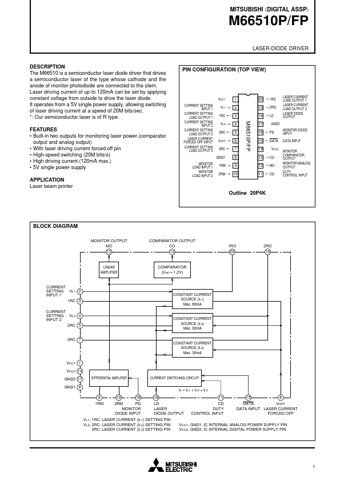

M66510FP Datasheet Preview — Preview of M66510FP PDF

Datasheet Details

Part number:

M66510FP

Manufacturer:

Mitsubishi

File Size:

224.62 KB

Description:

Laser-diode driver.
