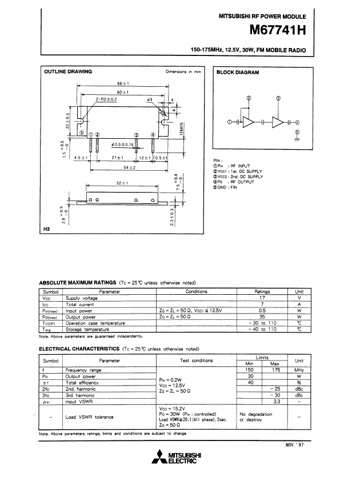

M67741H 150-175MHz /12.5V /30W / FM MOBILE RADIO

Po, Effi, Icc vs. freq 70 60 Po (W), Effi(%) 50 40 30 20 10 0 150 Icc1 Icc2 Pin=200mW Vcc1=12.5V Vcc2=12.5V Tc=25deg C Po, Icc1, Icc2 vs. Vcc1 14 50 12 10 Po (W) 8 6 4 2 0 175 10 0 4 6 8 10 12 14 Vcc1 (V) Icc1 Effi 10 f=150MHz Pin=200mW Vcc2=12.5V Tc=25deg C 40 Icc (A) 30 20 Po 8 6 Po Icc2 4 2 0 155 160 165 170 freq (MHz) Po, Icc1, Icc2 vs. Vcc1 50 40 Po (W) 30 20 10 Icc1 f=163MHz Pin=200mW Vcc2=12.5V Tc=25deg C Po, Icc1, Icc2 vs. Vcc1 10 50 40 Icc (A) Po (W) 30 20 10 0 4 6 8 10 .

M67741H_MitsubishiElectricSemiconductor.pdf

Preview of M67741H PDF
M67741H Datasheet Preview Page 2 M67741H Datasheet Preview Page 3

Datasheet Details

Part number:

M67741H

Manufacturer:

Mitsubishi

File Size:

103.43 KB

Description:

150-175mhz /12.5v /30w / fm mobile radio.
