M67742 Datasheet, Radio, Mitsubishi

PDF File Details

Part number:

M67742

Manufacturer:

Mitsubishi

File Size:

44.15kb

Download:

📄 Datasheet

Description:

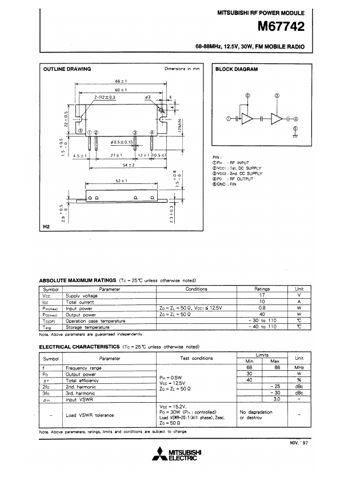

68-88mhz /12.5v /30w / fm mobile radio.
