M67799LA SILICON MOS FET POWER AMPLIFIER / 400-430MHz / 7.5W / FM PORTABLE RADIO

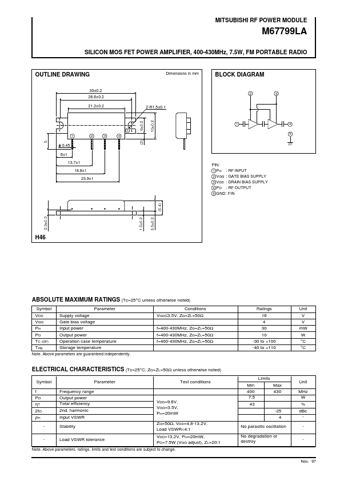

MITSUBISHI RF POWER MODULE M67799LA SILICON MOS FET POWER AMPLIFIER, 400-430MHz, 7.5W, FM PORTABLE RADIO OUTLINE DRAWING 30±0.2 26.6±0.2 21.2±0.2 2-R1.5±0.1 Dimensions in mm BLOCK DIAGRAM 2 3 1 5 1 2 3 4 4 5 0.45 6±1 13.7±1 18.8±1 23.9±1 PIN: 1 Pin : RF INPUT 2 VGG : GATE BIAS SUPPLY 3 VDD : DRAIN BIAS SUPPLY 4 PO : RF OUTPUT 5 GND: FIN H46 ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless otherwise noted) Symbol VDD VGG Pin PO TC (OP) Tstg Parameter Supply voltage Gate bias voltage Input powe.

M67799LA_MitsubishiElectricSemiconductor.pdf

M67799LA Datasheet Preview — Preview of M67799LA PDF

Datasheet Details

Part number:

M67799LA

Manufacturer:

Mitsubishi

File Size:

14.34 KB

Description:

Silicon mos fet power amplifier / 400-430mhz / 7.5w / fm portable radio.
