M67799SHA - SILICON MOS FET POWER AMPLIFIER / 490-512MHz / 7W / FM PORTABLE RADIO

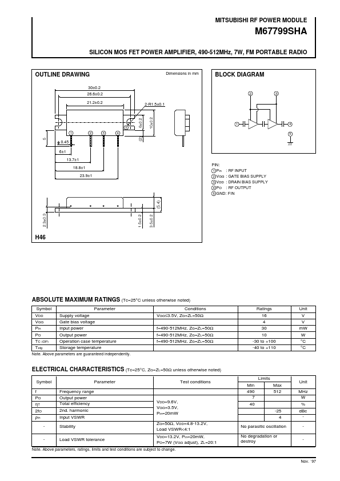

MITSUBISHI RF POWER MODULE M67799SHA SILICON MOS FET POWER AMPLIFIER, 490-512MHz, 7W, FM PORTABLE RADIO OUTLINE DRAWING 30±0.2 26.6±0.2 21.2±0.2 2-R1.5±0.1 Dimensions in mm BLOCK DIAGRAM 2 3 1 5 1 2 3 4 4 5 0.45 6±1 13.7±1 18.8±1 23.9±1 PIN: 1 Pin : RF INPUT 2 VGG : GATE BIAS SUPPLY 3 VDD : DRAIN BIAS SUPPLY 4 PO : RF OUTPUT 5 GND: FIN H46 ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless otherwise noted) Symbol VDD VGG Pin PO TC (OP) Tstg Parameter Supply voltage Gate bias voltage Input power.
