M67799UHA SILICON MOS FET POWER AMPLIFIER / 470-490MHz / 7W / FM PORTABLE RADIO

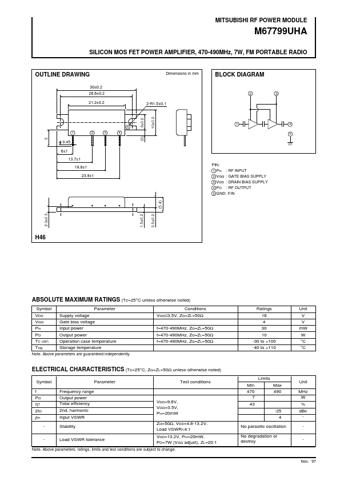

MITSUBISHI RF POWER MODULE M67799UHA SILICON MOS FET POWER AMPLIFIER, 470-490MHz, 7W, FM PORTABLE RADIO OUTLINE DRAWING 30±0.2 26.6±0.2 21.2±0.2 Dimensions in mm BLOCK DIAGRAM 2 3 2-R1.5±0.1 5 1 2 3 4 1 4 5 0.45 6±1 13.7±1 18.8±1 23.9±1 PIN: 1 Pin : RF INPUT 2 VGG : GATE BIAS SUPPLY 3 VDD : DRAIN BIAS SUPPLY 4 PO : RF OUTPUT 5 GND: FIN H46 ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless otherwise noted) Symbol VDD VGG Pin PO TC (OP) Tstg Parameter Supply voltage Gate bias voltage Input pow.

M67799UHA_MitsubishiElectricSemiconductor.pdf

M67799UHA Datasheet Preview — Preview of M67799UHA PDF

Datasheet Details

Part number:

M67799UHA

Manufacturer:

Mitsubishi

File Size:

14.47 KB

Description:

Silicon mos fet power amplifier / 470-490mhz / 7w / fm portable radio.
