M68739M Datasheet - Mitsubishi

M68739M SILICON MOS FET POWER AMPLIFIER

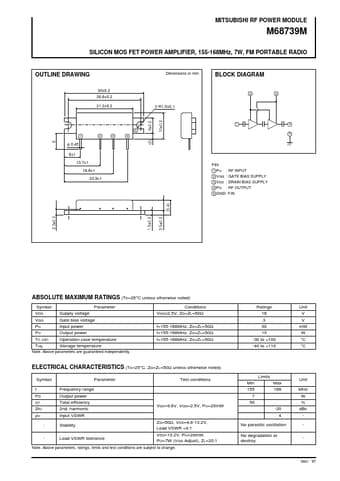

MITSUBISHI RF POWER MODULE M68739M SILICON MOS FET POWER AMPLIFIER, 155-168MHz, 7W, FM PORTABLE RADIO OUTLINE DRAWING 30±0.2 26.6±0.2 21.2±0.2 Dimensions in mm BLOCK DIAGRAM 2 3 2-R1.5±0.1 1 5 1 2 3 4 4 5 φ 0.45 6±1 13.7±1 18.8±1 23.9±1 PIN: 1 Pin : RF INPUT 2 VGG : GATE BIAS SUPPLY 3 VDD : DRAIN BIAS SUPPLY 4 PO : RF OUTPUT 5 GND: FIN ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless otherwise noted) Symbol VDD VGG Pin PO TC (OP) Tstg Parameter Supply voltage Gate bias voltage Input power Out.

M68739M Datasheet (13.46 KB)

M68739M Datasheet Preview — Preview of M68739M PDF

Datasheet Details

Part number:

M68739M

Manufacturer:

Mitsubishi

File Size:

13.46 KB

Description:

Silicon mos fet power amplifier.
