ML725B16F - 2.5Gbps InGaAsP DFB LASER DIODE

Datasheet Summary

Description

ML7xx16 series are uncooled DFB (Distributed Feedback) laser diodes for 2.5Gbps transmission emitting light beam at 1310nm.

/4 shifted grating structure is employed to obtain excellent SMSR performance under 2.5Gbps modulation.

Features

  • /4 phase shifted grating structure Wide temperature range operation (-20ºC to 85ºC ) High side-mode-suppression-ratio (typical 45dB) High resonance frequency (typical 11GHz).

📥 Download Datasheet

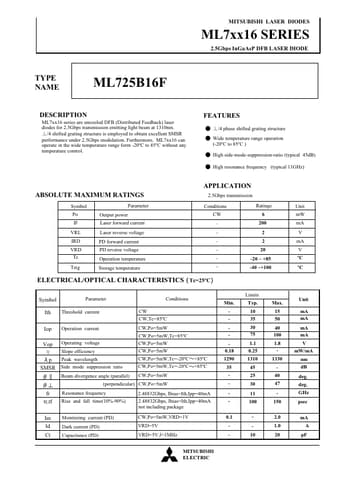

Datasheet preview – ML725B16F

Datasheet Details

Part number ML725B16F
Manufacturer Mitsubishi
File Size 51.98 KB
Description 2.5Gbps InGaAsP DFB LASER DIODE
Datasheet download datasheet ML725B16F Datasheet
Additional preview pages of the ML725B16F datasheet.

📁 Similar Datasheet

  • ML725B16F - (ML7xx16) LASER DIODES 2.5Gbps InGaAsP DFB LASER DIODE (Mitsubishi Electric)
  • ML725B11F - (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES (Mitsubishi Electric)
  • ML725B19F - (ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES (Mitsubishi Electric)
  • ML725B34F - (ML7xx34) 2.5Gbps InGaAsP DFB LASER DIODE (Mitsubishi Electric)
  • ML725B45F - (ML7xx45) 1310nm InGaAsP FP LASER DIODES (Mitsubishi Electric)
  • ML725AA11F - (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES (Mitsubishi Electric)
  • ML725C19F - (ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES (Mitsubishi Electric)
  • ML725C45F - (ML7xx45) 1310nm InGaAsP FP LASER DIODES (Mitsubishi Electric)
  • ML725J11F - (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES (Mitsubishi Electric)
  • ML725J16F - (ML7xx16) LASER DIODES 2.5Gbps InGaAsP DFB LASER DIODE (Mitsubishi Electric)
Other Datasheets by Mitsubishi

Full PDF Text Transcription

Click to expand full text
MITSUBISHI LASER DIODES ML7xx16 SERIES 2.5Gbps InGaAsP DFB LASER DIODE TYPE NAME ML725B16F FEATURES /4 phase shifted grating structure Wide temperature range operation (-20ºC to 85ºC ) High side-mode-suppression-ratio (typical 45dB) High resonance frequency (typical 11GHz) DESCRIPTION ML7xx16 series are uncooled DFB (Distributed Feedback) laser diodes for 2.5Gbps transmission emitting light beam at 1310nm. /4 shifted grating structure is employed to obtain excellent SMSR performance under 2.5Gbps modulation. Furthermore, ML7xx16 can operate in the wide temperature range form -20ºC to 85ºC without any temperature control.
