ML725C45F, ML720J45S (ML7xx45) 1310nm InGaAsP FP LASER DIODES

Mitsubishi Electric

Description

MITSUBISHI LASER DIODES ML7xx45 SERIES Notice: Some parametric limits are subject to change.1310nm InGaAsP FP LASER DIODES TYPE NAME .
ML720J45S , ML720K45S, ML720Y45S ML725B45F , ML725C45F FEATURES. 1310nm typical emission wavelength, FP-LDs. Low threshold current, l.

📥 Download Datasheet

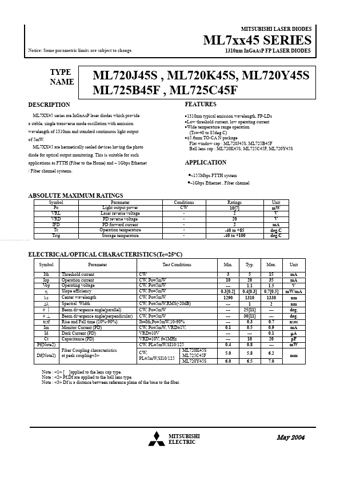

ML725C45F Datasheet Preview — This datasheet PDF includes multiple part numbers: ML725C45F, ML720J45S. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ML725C45F, ML720J45S
Manufacturer: Mitsubishi Electric
File Size: 224.93 KB
Datasheet: ML720J45S_MitsubishiElectric.pdf
Description: (ML7xx45) 1310nm InGaAsP FP LASER DIODES
Note: This datasheet PDF includes multiple part numbers: ML725C45F, ML720J45S.
Please refer to the document for exact specifications by model.

Features

* 1310nm typical emission wavelength, FP-LDs
* Low threshold current, low operating current
* Wide temperature range operation (Tc=-40 to 85deg. C)
* φ5.6mm TO-CA N package Flat window cap : ML720J45S, ML725B45F Ball lens cap : ML720K45S, ML725C45F, ML720Y45S ML7XX45 seri

Applications

* as FTTH (Fiber to the Home) and ~ 1Gbps Ethernet / Fiber channel systems. APPLICATION
* ~155Mbps FTTH system
* ~1Gbps Ethernet , Fiber channel ABSOLUTE MAXIMUM RATINGS Symbol Po VRL VRD IFD Tc Tstg www. DataSheet4U. com Parameter Light output power Laser reverse voltage PD reverse vol
